BRITELINE GEN2

Versatile floodlight solution with high efficiency

Description

Experience the exceptional performance of the BRITELINE GEN2 floodlight, the ultimate solution for illuminating outdoor sports facilities and large areas with substantial energy efficiency.
Available in two sizes, it offers an innovative layout comprising one or two adjustable lighting modules that grant unparalleled versatility. This unique design allows for precise orientation, enabling seamless adaptation to any environment with permanently accurate photometry.
With BRITELINE GEN2, bring sports lighting to the next level. This floodlight is compatible with the Schréder ITERRA control system, enabling intelligent and intuitive local or remote control of your lighting installation.
Discover BRITELINE GEN2 and revel in the perfect balance of performance, versatility, and energy efficiency.

  • A versatile asset
  • The BRITELINE GEN2 floodlight introduces a unique layout that combines adjustable light modules with a robust orientable bracket and a wide range of asymmetric optics. This innovative design allows unmatched versatility that not only achieves peak photometry but also enables boundless flexibility in lighting design.

  • The optimum lighting
  • BRITELINE GEN2 is equipped with ProFlexTM photometric engines, with directly integrated optics. This architecture, comprising high-grade PMMA optics, enables high performance to be achieved with impressive and durable energy efficiency, at the lowest cost. BRITELINE GEN2's LED technology provides powerful long-lasting lighting that is also comfortable, thanks to its low-glare light.

  • Intelligent and intuitive lighting
  • Compatible with the Schréder ITERRA control system, BRITELINE GEN2 provides intelligent and intuitive lighting, elevating recreational sports and outdoor floodlighting to new heights.

  • Remote toolless gear
  • The BRITELINE GEN2 remote gear box can be installed at a distance of up to 200m. By offering this flexibility, it guarantees seamless compatibility with any existing configuration while simultaneously reducing the weight and stress exerted on the top of poles. With this approach, there is no longer any requirement to invest in new brackets. Furthermore, access to the gear box is toolless, greatly simplifying and expediting maintenance activities. An integrated driver is available for the size 1.

Optimised floodlight solution with innovative design

With its innovative design, BRITELINE GEN2 is setting a new benchmark in floodlighting with unparalleled flexibility and adaptability.
Its layout ensures optimal lighting results in any scenario, while its two sizes enable coverage of a wide range of large and smaller outdoor lighting project requirements. With adjustable devices available at both the bracket and module levels, BRITELINE GEN2 effortlessly adapts to any existing environment, delivering outstanding performance.
Not only does BRITELINE GEN2 excel in physical adaptability, it also guarantees compatibility with local standards. This floodlighting solution provides the added benefit of optional hoods, enabling precise light direction according to your needs. This remarkable feature not only achieves exceptional lighting precision but also ensures compliance with stringent light pollution regulations and dark sky requirements.
Moreover, the bracket design has been enhanced for high and low installations, optimising luminaire distribution within the entire setup to maximise performance while minimising costs.

Characteristics

Recommanded installation height (m)
10.0 -
40.0
Klasa ochronności elektrycznej
Zabezpieczenie przeciwprzepięciowe (kV)
10
Opcje sterowania
Opcje sterowania
Systemy sterowania
Luminaire output flux (lm)
90900 -
207600
Power consumption (W)
680.0 -
1392.0
Skuteczność świetlna (lm/W)
153
Wskaźnik oddawania barw (CRI)
70
80
90
Wskaźnik udziału światła wysyłanego ku górze (ULOR)
0%
ULR
0%
ULOR may be different according to the configuration. Please consult us.
ULR may be different according to the configuration. Please consult us.
Other colour temperatures available as an option. Please contact us for further information.
Obudowa
Aluminium
Klosz
Polycarbonate (with integrated lenses)
Szczelność oprawy
Odporność na uderzenia
Access for maintenance
Wszystkie konfiguracje
Lifetime may be different according to the size/configurations. Please consult us.
Zakres temperatury pracy (Ta)
-30°C up to +40°C / -22°F up to 104°F
Depending on the luminaire configuration. For more details, please contact us.

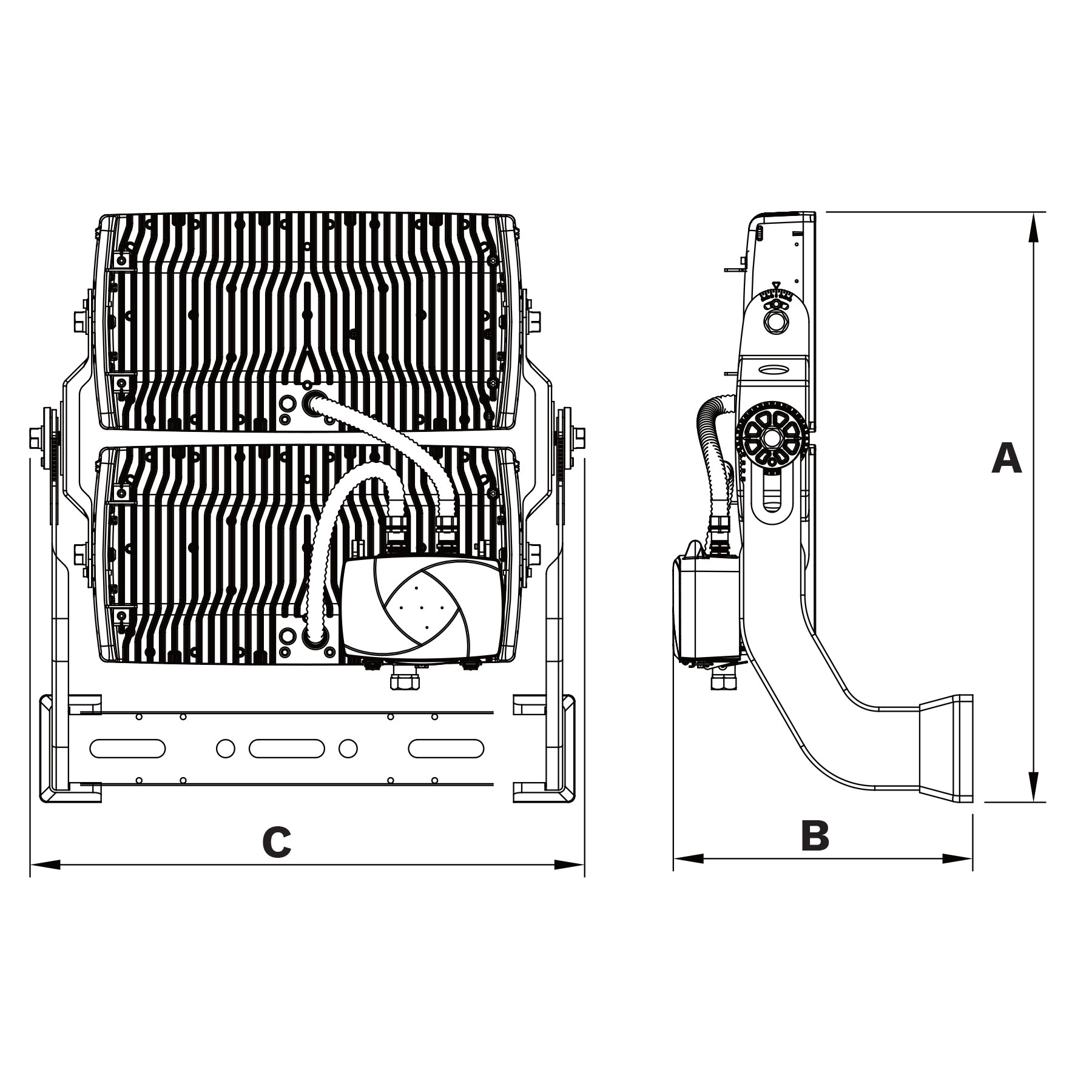

Dimensions and mounting

AxBxC (mm | inch)
BRITELINE GEN2 1 : 436x332x609 | 17.2x13.1x24.0
BRITELINE GEN2 2 : 723x367x679 | 28.5x14.4x26.7
Waga (kg | lbs)
BRITELINE GEN2 1 : 16.5 | 36.3
BRITELINE GEN2 2 : 30.0 | 66.0
Opcje montażu
Surface mounting

Video file

Discover Schréder ITERRA, playful control for sports lighting



Enjoy maximum simplicity with Schréder ITERRA, a wireless solution that is revolutionising sports lighting. Enjoy a user-friendly mobile app, Bluetooth technology and minimal hardware for easy installation. Experience total versatility with cost-effectiveness, local or remote control and high-end security. Enhance your sports lighting with the Schréder ITERRA mobile app.

Control systems

BRITELINE GEN2 control options

BRITELINE GEN2 offers the following dimming/control options:
- DALI2
- 0-10V
- DMX
- NEMA node

DALI-2 is the latest version of the DALI protocol to work with the Schréder ITERRA control app. It supports control devices such as application controllers and input devices (e.g. sensors) and guarantees interoperability between products from different vendors.
With this compatibility, BRITELINE GEN2 provides intelligent intuitive light that redefines the sports and large area lighting experience.
Experience lighting control like never before and create an atmosphere that surpasses expectations.

Control link

Installation and Maintenance

Adjustable brackets

BRITELINE GEN2 benefits from robust adjustable brackets enabling light orientation at both the bracket and module levels for the most precise photometry. A graduated wheel integrated to fixation facilitates the bracket setting.

Toolless access to the electronics

Access to the remote gear box is completely toolless, greatly simplifying and expediting maintenance activities while substantially saving costs on onsite interventions.

Accessories and versions

Optional hoods

The BRITELINE GEN2 floodlights provide the added benefit of optional hoods for precise light direction. This option also prevents light pollution.
