TFLEX MODULE

The most flexible optical unit for your tunnel lighting projects

Opis

Tunnels

Rozwiązania oświetleniowe do tuneli

TFLEX MODULE is a revolutionary, modular-based optical unit, designed to enhance the road tunnel lighting experience. Equipped with optimised and customisable optics, TFLEX MODULE provides perfect visibility all along the tunnel to guarantee drivers safety. Its great modularity delivers a tunnel lighting solution capable of adapting to all kinds of tunnel projects.
TFLEX MODULE is a complete lighting solution, offering modular optical units, flexible mounting, smart cabling and connectors at once
  • Modularity

    • This innovative optical module can be assembled directly or remotely with up to three modules. This modular approach offers the possibility to create various lighting configurations to fit any tunnel geometry.

  • Complete solution

    • This innovative lighting solution offers flexible optical units, a wide range of mounting possibilities, smart cabling, quick-on QPD connectors and can be combined with an advanced control system to improve safety inside the tunnel and provide major operational benefits for tunnel managers.

  • Enhanced lighting experience

    • This versatile module integrates the latest tunnel optics for symmetrical, pro-beam or counter-beam (CBL) lighting distributions to optimise lighting levels on the road and wall surfaces while providing high visual comfort.

  • Plug and play

    • TFLEX MODULE uses pre-assembled cables and connectors to drastically ease and reduce the mounting time.

TFLEX DRIVE

TFLEX DRIVE is a driver box enabling a remote assembly with one or multiple TFLEX MODULEs. This remote connection is ensured by pre-assembled cables, available with quick-on QPD connectors to guarantee a fast and easy installation. Integrating the most recent drivers and control options, TFLEX DRIVE is compatible with the Advanced Tunnel System 4 (ATS 4) to optimise tunnel lighting management and maximise users safety.
Optimised lighting installation

TFLEX MODULE has been developed to enable constant dimming and always provide the adapted light. Designed with two electronic circuits, it can either be dimmed completely, partially or even have 50% of its LEDs switched off. This possibility not only maximises energy savings, it also extends the lifetime of the complete installation and reduces the need for disruptive maintenance.

Unlock the full potential of your tunnel lighting with OMNIBOX XL



Where traditional driver boxes fall short, OMNIBOX XL steps up as the most versatile, customisable, yet easy-to-use remote power solution. Available in 8 sizes and compatible with various optical units, it offers multiple drivers, surge protection, connectivity, mounting and control options. This exceptional flexibility allows OMNIBOX XL to fit seamlessly into any tunnel environment and geometry. With OMNIBOX XL, tunnel lighting has no limits.

Find out more by consulting the data sheet

Charakterystyka

Zgodność
znak CE
Certyfikat ENEC
Ceryfikat ENEC +
Ceryfikat ET/UL
Znak RCM
Klasa ochronności elektrycznej
Class 1US
Class I EU
Class II EU
Napięcie znamionowe
277V - 50-60Hz
220-240V – 50-60Hz
347-480V – 50-60Hz
Zabezpieczenie przeciwprzepięciowe (kV)
10
20
Opcje sterowania
1-10V
DALI
Opcje sterowania
Zdalne zarządzanie
Bi-power
Lumgate
Systemy sterowania
Advanced Tunnel System 4 DALI (ATS 4 DALI)
ATS 4 (Advanced Tunnel System 4)
Strumień świetlny zakres (lm)
12900 -
90100
Moc (W)
83.0 -
640.0
Maksymalna skuteczność świetlna (lm/W)
177
Temperatura barwowa
Neutralny biały 740
Wskaźnik oddawania barw (CRI)
70
Obudowa
Aluminium
Optyka
PMMA
Klosz
Tempered glass
Szczelność oprawy
IP66/IP69
Odporność na uderzenia
IK 10
Wszystkie konfiguracje
100,000h - L95 (wysokiej mocy LED)
Lifetime may be different according to the size/configurations. Please consult us.
Zakres temperatury pracy (Ta)
-30°C up to +50°C / -22°F up to 122°F
Depending on the luminaire configuration. For more details, please contact us.

Wymiary I Montaż

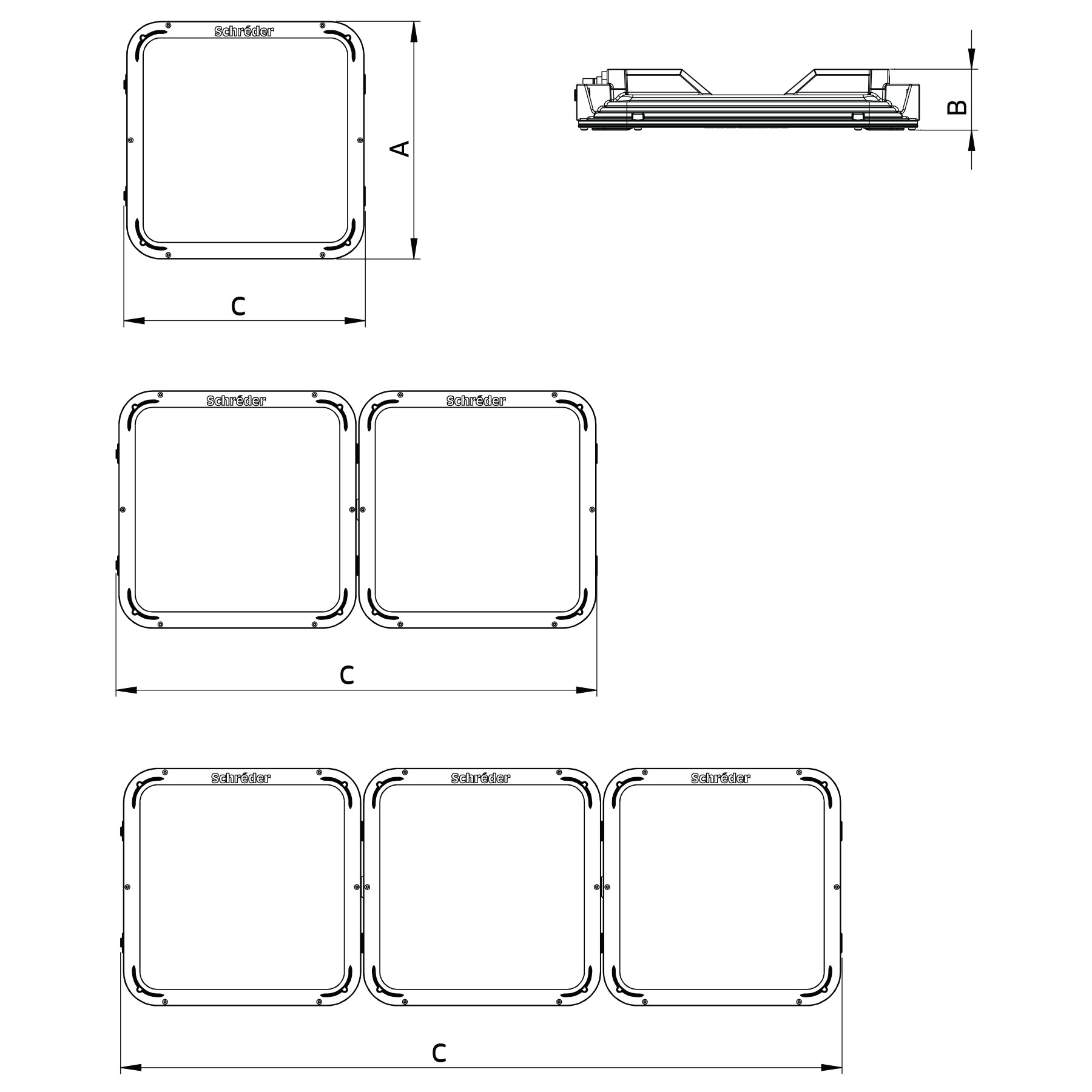

AxBxC (mm | inch)
TFLEX MODULE 1 : 385x70x391 | 15.2x2.8x15.4
TFLEX MODULE 2 : 385x70x780 | 15.2x2.8x30.7
TFLEX MODULE 3 : 385x70x1170 | 15.2x2.8x46.1
Waga (kg | lbs)
TFLEX MODULE 1 : 8.0 | 17.6
TFLEX MODULE 2 : 15.0 | 33.0
TFLEX MODULE 3 : 23.0 | 50.6
Opcje montażu
Natynkowy
Hak do montażu na łańcuchu
Montaż ścienny (wysiegnik)
Pobierz kartę produktu

Systemy sterowania

TFLEX MODULE control options

TFLEX MODULE, connected to its driver box, is compatible with various control options:
• Remote management
• DALI or 1-10V network protocols
• Bi-power

TFLEX MODULE is compatible with the Advanced Tunnel System 4 (ATS 4), a smart control solution co-developed by Schréder and Phoenix Contact. This solution is probably the most powerful on the market. It has been designed to provide auto-commissioning, seemlessly adapt the lighting level according to applicable standards and conditions in the tunnel, to monitor the power consumption and to report any failures.

Control link

Opcje sterowania

Enhance tunnel safety with precise control



Discover the power of Advanced Tunnel System 4 (ATS 4) for comprehensive tunnel lighting management. Developed with Phoenix Contact, ATS 4 offers precise remote control, adaptive lighting levels and rapid response to tunnel events. Lumgate-equipped luminaires keep people safe, while robust industrial communication and PLCnext technology optimise energy consumption. Invest in safety and efficiency with ATS 4 and maximise your return on investment.

Explore ATS 4 solutions

Instalacja i montaż

Flexible installation

TFLEX MODULE is available with a large variety of mounting options. It offers 6 types of bracket: fixed, adjustable or swivelling in stainless or galvanised steel. This mounting modularity allows TFLEX MODULE to meet all types of tunnel geometries.

Akcesoria i wersje

Fixed brackets

The fixed brackets allow standard mounting on flat surfaces, whether it is on walls or ceilings.
Suspended and wall pull-out brackets

The pull-out fixation brackets facilitate the installation on walls and ceilings while eliminating any luminaire weight constraints . The lighting modules can be easily inclined to preset values varying from -20 to +20°.
Suspended and wall adjustable brackets

The adjustable fixation brackets provide flexible mounting for both walls and ceilings as they are capable of adapting to all tunnel configurations. The adjustable brackets enable slight shifts to the left or to the right in combination with a gradual inclination to deliver the ideal lighting for your tunnel.
